不同的用途与概况/Brief introduction：

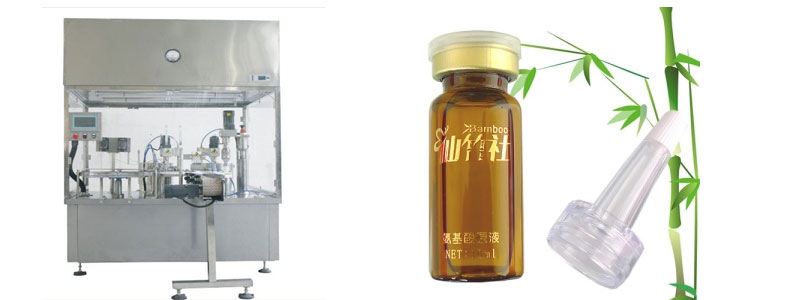

机器是在人才引进和吸收率国外的先进集体技术应用的核心上，我来平台独立生产制造的那款正规对应西林瓶的装灌、上塞、旋（轧）盖机。机器进行日式全德国高定位误差半开放式凸轮轴误差等级工作台面器，定位误差高，作业靠谱，操作适用期长。该误差等级器空间结构比较简单，长期的操作无须修补。这手机核心常用来各样小药量液态体的罐装、压塞及旋（轧）盖，如单方精油、打针剂等。多用来物品、制药业、蓝翔塑业有限公司所研发的互联网行业及研发研究方向。这手机既可pc单机研发，又可与洗瓶机、干躁机等设施组建联动机制研发线。彻底契合地区GMP规定。这手机不错要根据加盟商规定升级成电气设备系统配置。NFGX-5/50 Automatic Vial Filling&rotation (rolling) machine is built in the absorption of foreign advanced tecnology, based on independently developed by the company ,It is the domestic leading level.This machine is suitable for a variety of small doses of liquid filling&capping such as oil, injection . Widely used in food, pharmaceutical, chemical industries and scientific research.  Single machine can produce, but also with washing machine, dryer and other equipment linked production line. Full compliance with the GMP requirements. The machine according to customer requirements to upgrade the electrical configuration

优点/Characteristic:：

◆电脑软件界面添加、进行直观性便利、PLC保持，装量*。Human-machine interface settings, an easy and intuitive, PLC control, the amount of precision equipment. ◆变频柜把握、制作高速度随便调准、自动的运算。Frequency control, the production rate be adjusted automatically count  ◆系统自动关机的功能，无瓶不灌装生产线。No bottle no filling.◆圆板产品定位式灌装生产线，安稳正规。Disc positioning filling, stable and reliable.◆高可靠性强，精密度轴承测量范围计设定，确定*。High-precision cam meter control, precise positioning.◆利用SUS304及316L不锈钢材质的制造出，几乎契合GMP标准。SUS304 and 316L stainless steel, full compliance with GMP requirements.

的技术数据/ technical parameters：

装量范围图Filling volume	5-50ml
装量数据误差loading error	≤ ±1%
旋（轧）盖通过率 Rotation (rolling) Cover pass rate:	≥99%
出产能利用率力Production capacity	30-60瓶/꧟分 钟  低转速 70-100瓶/分 钟     高速度 30-60 bottles / min  70-100 bottles / minute (🎐high speed)
压塞率Tamponade rate	≥99%
24v电源 Power	380V/50Hz
工作电压Power	2.0 kw
机设备净重量Net weight	600 kg
形壮规格 Dimension	2000*1000*1500mm
