应用与介绍/Brief Introduction：

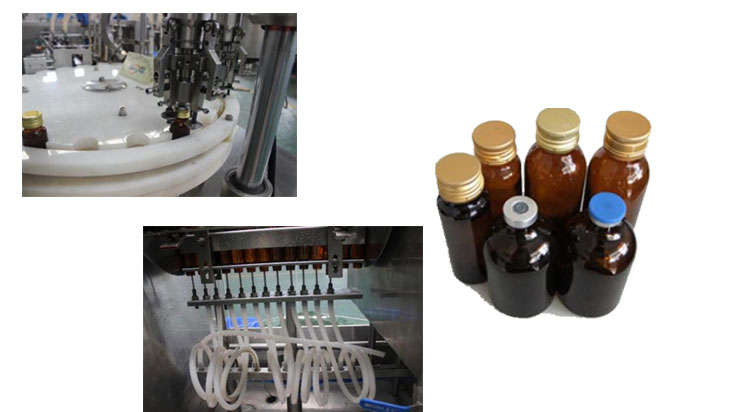

本制造线适于30ML以上内容胶囊液的装灌制造，由供瓶机、辊子洗瓶机、条直线式装灌轧（旋）盖机、柜式标贴机等主设备分解成，可全手动结束理瓶、洗瓶、装灌、上盖、旋（轧）盖、标贴等工艺流程。大部分采用药厂、食物、化工品的的各式各样液态体原物料的装灌连动制造。本制造线已经贴合GMP需要。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

优势特点 /Characteristic：

◆表皮在材质为304不銹钢，罐装一小部分采316L不銹钢，复合GMP规程。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可认知多样式制造。can be situable for several bottle specs.◆进行固定，低频噪音小，装罐精度 。Stable running,low noise,precise filling.◆破瓶率低，原料优秀率高，水耗少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆这条制造线可pc单机掌握和品牌连锁掌握。The whole line can single machine control or interlock control.

水平性能参数/Main Technical Parameters：

适宜规格参数Filling Volume	30-150ML
灌装设备头数Productivity	ꦺ低速行驶4头        &♛nbsp;     迅速8头 4 at low speed      𓂃       hig🍰h speed 8
分娩力	低速行驶30-50瓶/分     高速的70-100瓶/分 30-50bottles/min  70-100bottles/min
分装精度等级Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
电源模块Power Supply	220V/50Hz
电机功率Power Supply	2.5kw
生产的线总长Dimension	7500*1000*1700MM
