妙用与简洁：/Purpose and introduction

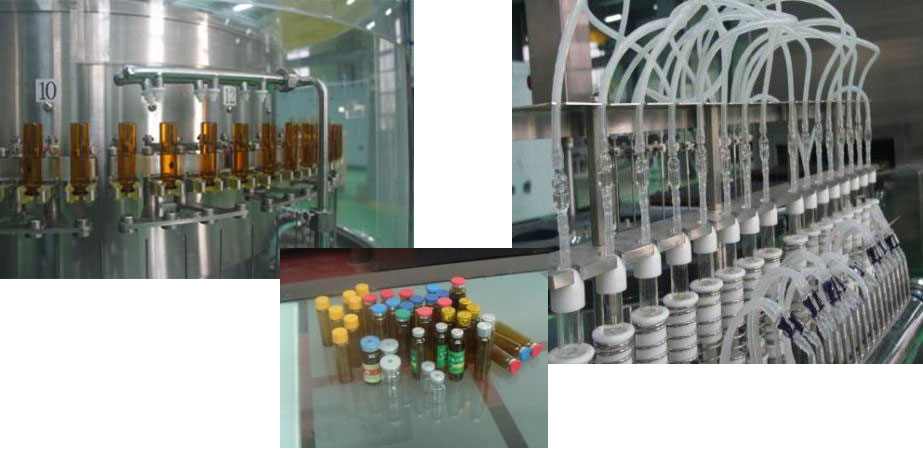

内服液洗烘灌轧联动机制机制线由落地彩超波洗瓶机、隧道施工式制热 无限循环过滤除菌烘烤箱、内服液包装轧盖机等组成的，适宜于 5-30ml 等各种规 格内服液瓶的种植。可完全对otc药品种植中安瓿瓶淋水、彩超波洗掉、冲水、充 气、烘烤过滤除菌、加热、包装、轧盖等工艺流程部骤的联动机制机制使用。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特征 :/characteristic

◆洗瓶机分为物理手夹瓶，实用多重技术参数的瓶盖；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶使用水蒸气喷针往返跟进插入图表格方式方法，除污成果好，节电能源系统。并要设针架防颤动设施，增进喷针插入图表格水瓶座的最准度，减低断针表现遭受；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整体的雾气输送管、喷针已经独立性分类建立，预防了穿插影响，具有GMP规范化需求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶螺旋轴前加裝加载块，有保护的螺旋轴，才能减少碎瓶的功效Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶主要包括局部出口发送到带，连入拨块运输口服方式液，工作安全稳定可信度In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱通过红外线供暖管，304不锈钢供暖管加厚供暖平均温度光滑性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆分装轧盖机要选配陶瓷图片泵、不锈钢304泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖工作。Pieces filling without bottle filling, no bottle no rolling function.◆整线利用PLC总管理、变频柜器、手触式屏管理新技术，执行安全稳定耐用。手触式屏可展现各pc单机的执行的情况，各管理点的静水压、气压表、风压差、体温等展现，各触点开关的情况和常见错误代码问题展现，常见错误代码问题自我价值观检测和常见错误代码问题分折及避免办法。使整个的生育方式以达到会深圳自动化管理，联线存在三机电气稳定提升装置，有保障生育平衡耐用。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.结合投资者的所需，还可供选用：According to the needs of customers, but also available for selection:◆PLC、德力西、西门子、台达等品牌标志管控系统化；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气水压、水溫及超声检查波屈服强度、尘埃什么意思水粒子、空气流速高清在线查测、报警灯、記錄、彩打整体。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、无菌检测分隔器装置。Mixer ORABS, CRABS, aseptic isolator system.

能力指标：technical parameters

适于規格Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装设备高精度Filling accuracy(%)	≤ ± 2.5
灌装设备头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖达标率率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
