贷款用途与简单：Purpose and introduction

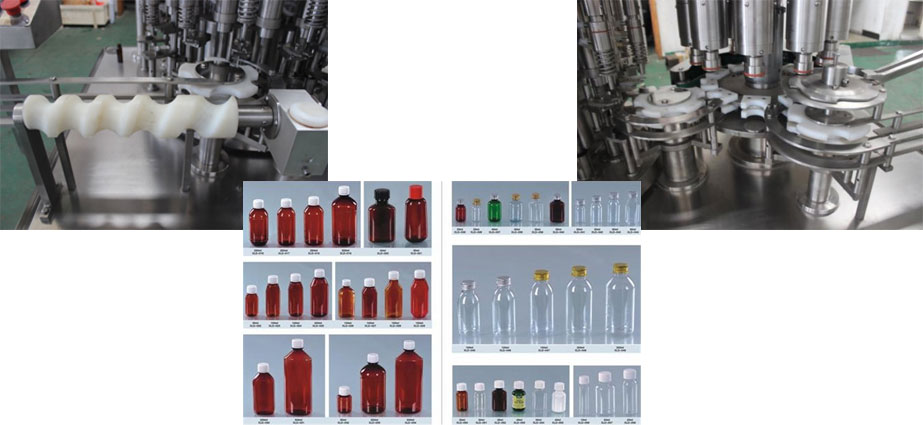

远程服务器适应用于于对30-500ML全系列的玻璃容器、金属瓶的装罐塑封。选用往来账往来式活塞杆参与装罐，电磁能自激振荡送盖，也可不是可以轧盖(金属式)或旋盖(金属盖)塑封，也可不是可以和上下的生孩子步骤主设备相联结构生孩子线，与此同时也可不是可以在购买百级层流罩。This machine is suitable for the filling and sealing of 30-500ml series glass bottles and plastic bottles. The reciprocating between piston filling, electromagnetic oscillation send cover, cover (metal) can be rolled or screw cap (plastic cap) sealing. Can produce and the produce of the process equipment before and after connecting line. In addition, the laminar flow hood is available for selection.

优势特点：characteristic

装量较准，杜尽渗漏。缺瓶不装灌。 直流变频调压。 主動提示记数功郊。 机床均按GMP规定设定。The filling amount is accurate, as Du drip. Lack of bottle does not fill. Frequency control of motor speed. Active display count. The machine according to the GMP request design.

技术设备基本参数/technical parameters：

型号 model	NQGX30-500
可用型号Cutting dimension	30-500ml
加工技能Production capacity	80-200瓶/分（罐/1分钟）80-200 bottles/min (cans/min)
装罐gps精度 Filling accuracy	≤±1%
电 Power	380V/50Hz
旋（轧）盖率Spin (rolling) cover rate	≥99%
功率power	3.0 kw
自动化设备净含量 Machine weight	1500 kg
外形尺寸 boundary dimension	3000*1100*1700mm
